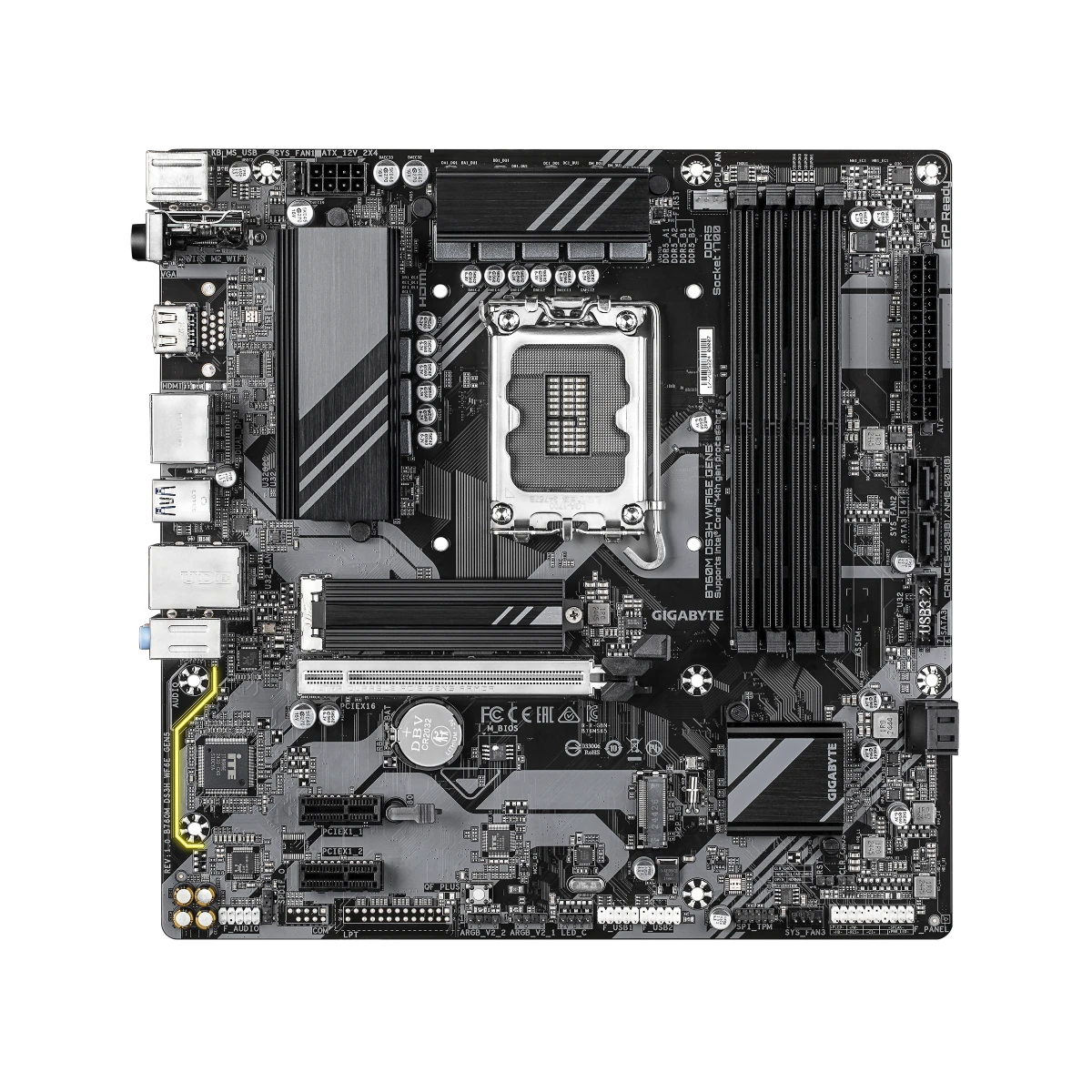

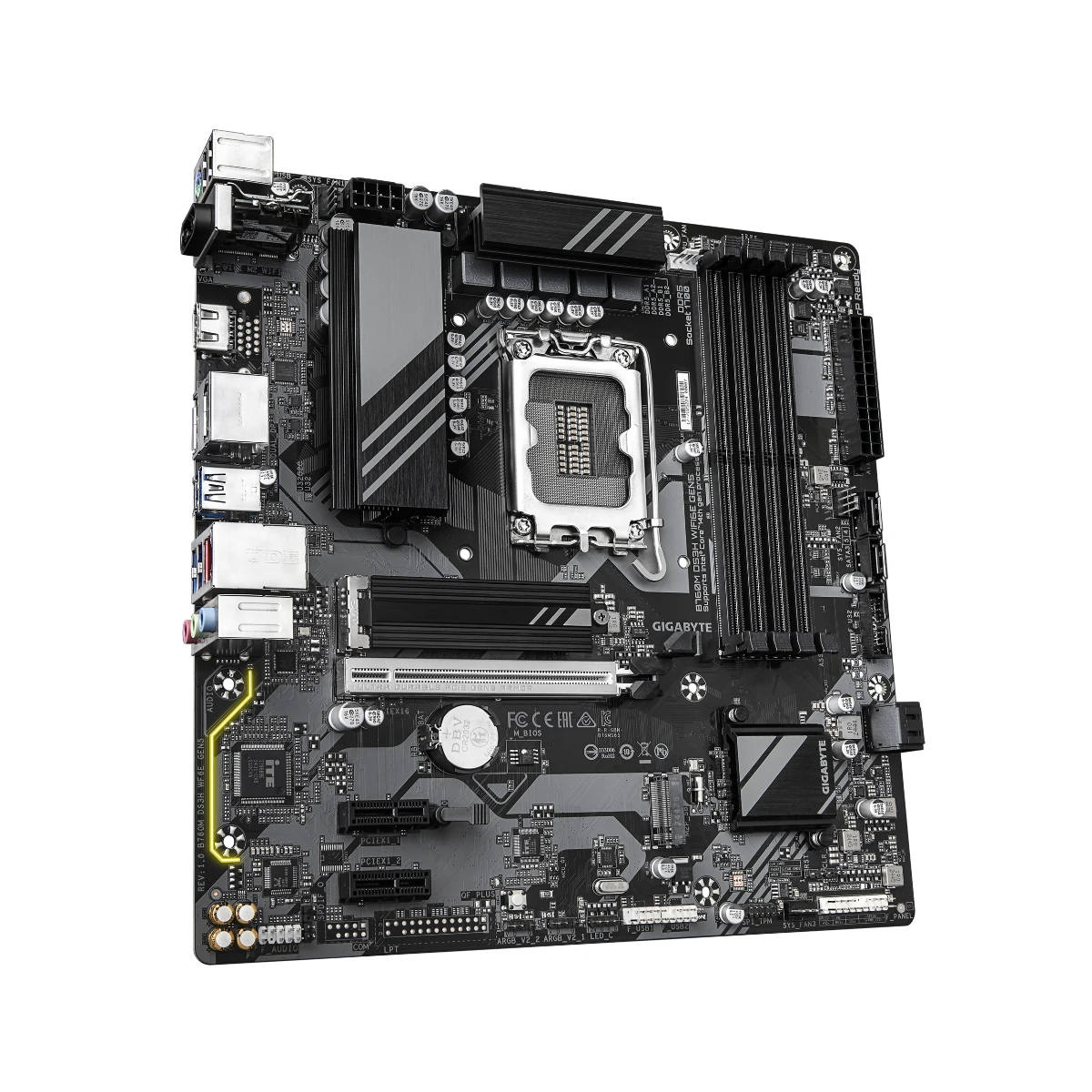

GIGABYTE B760M DS3H WIFI6E GEN5 is built to power modern Intel desktop systems with strong performance, advanced connectivity, and dependable stability. Supporting 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors with the LGA1700 socket, this motherboard provides a reliable platform for gaming PCs, creative workstations, and productivity builds in Global. With 4 x DDR5 DIMM sockets supporting up to 256 GB of system memory, users can achieve exceptional memory bandwidth and responsiveness. It supports memory speeds including DDR5 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600 / 5200 / 4800 / 4400 MT/s, ensuring optimized performance for demanding workloads. Compatibility with Extreme Memory Profile (XMP) further enables easy memory overclocking.

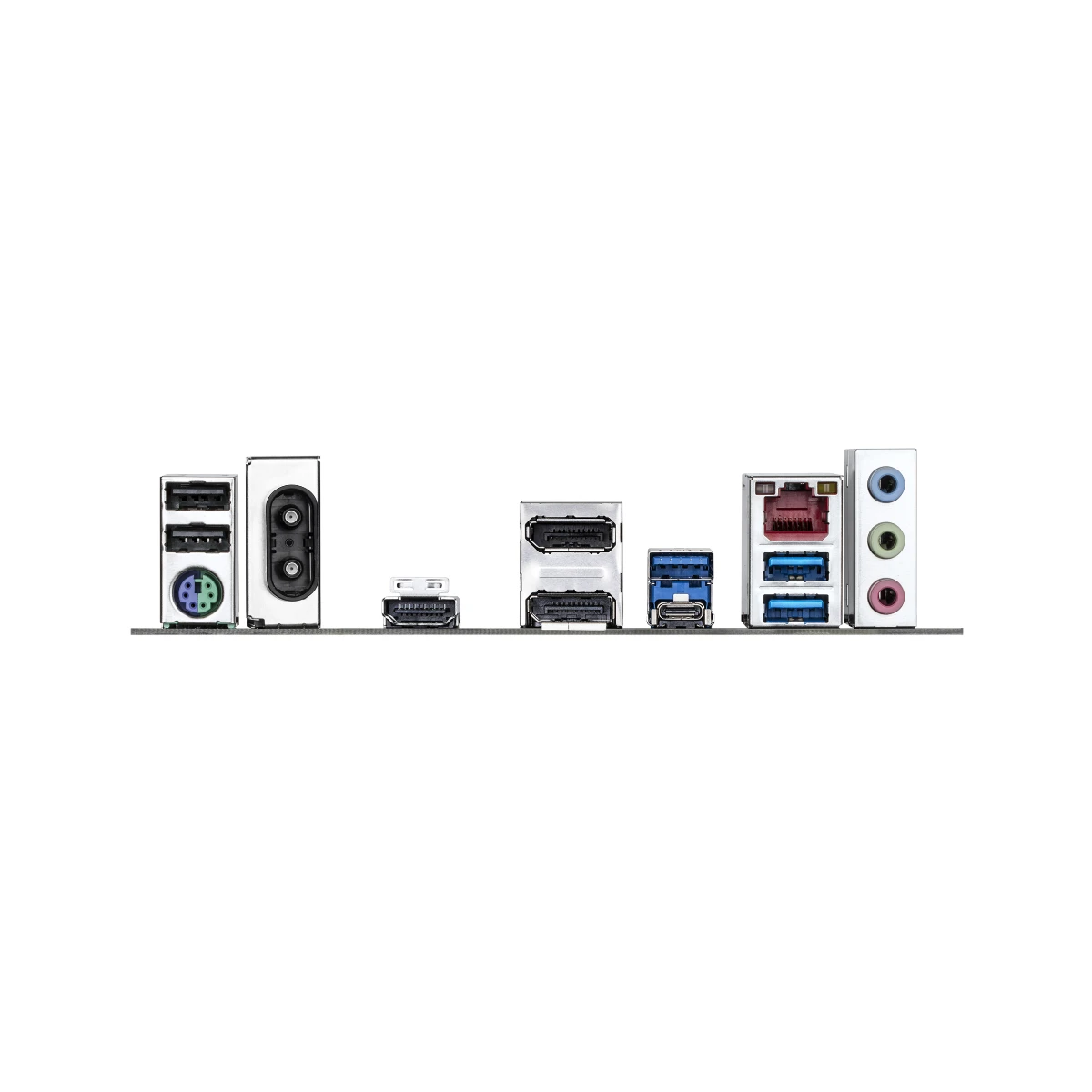

For graphics and display capabilities, the motherboard includes 1 x HDMI port supporting up to 4096x2160@60 Hz and 2 x DisplayPorts supporting up to 4096x2304@60 Hz, enabling flexible multi-display setups. Expansion capabilities include 1 x PCI Express x16 slot supporting PCIe 5.0 running at x16, along with 2 x PCI Express x1 slots supporting PCIe 3.0, allowing users to install graphics cards, storage controllers, and additional expansion devices. Storage performance is enhanced with 2 x M.2 connectors supporting PCIe 4.0 x4/x2 SSD support and 4 x SATA 6Gb/s connectors, with support for RAID 0, RAID 1, RAID 5, and RAID 10 for reliable data management and high-speed storage configurations.
Networking is powered by Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) for high-speed wired connectivity, while wireless communication is handled by Intel® Wi-Fi 6E AX210 supporting 2.4/5/6 GHz carrier frequency bands and Bluetooth 5.3. A wide range of connectivity ports including USB Type-C® with USB 3.2 Gen 2 support, USB 3.2 Gen 1 ports, and USB 2.0/1.1 ports ensures compatibility with modern peripherals and devices. High-definition audio is delivered by Realtek® Audio CODEC supporting 2/4/5.1/7.1-channel sound with S/PDIF Out support for immersive audio experiences.
To enhance system reliability and user convenience, the motherboard includes support for GIGABYTE Control Center (GCC) along with Q-Flash and Q-Flash Plus for easy BIOS updates. Comprehensive hardware monitoring features such as Voltage detection, Temperature detection, Fan speed detection, and Water cooling flow rate detection help maintain optimal system performance and thermal management. With its balanced feature set and robust build quality, B760M DS3H WIFI6E GEN5 provides a dependable and high-performance motherboard solution for modern PC builds in Global.
