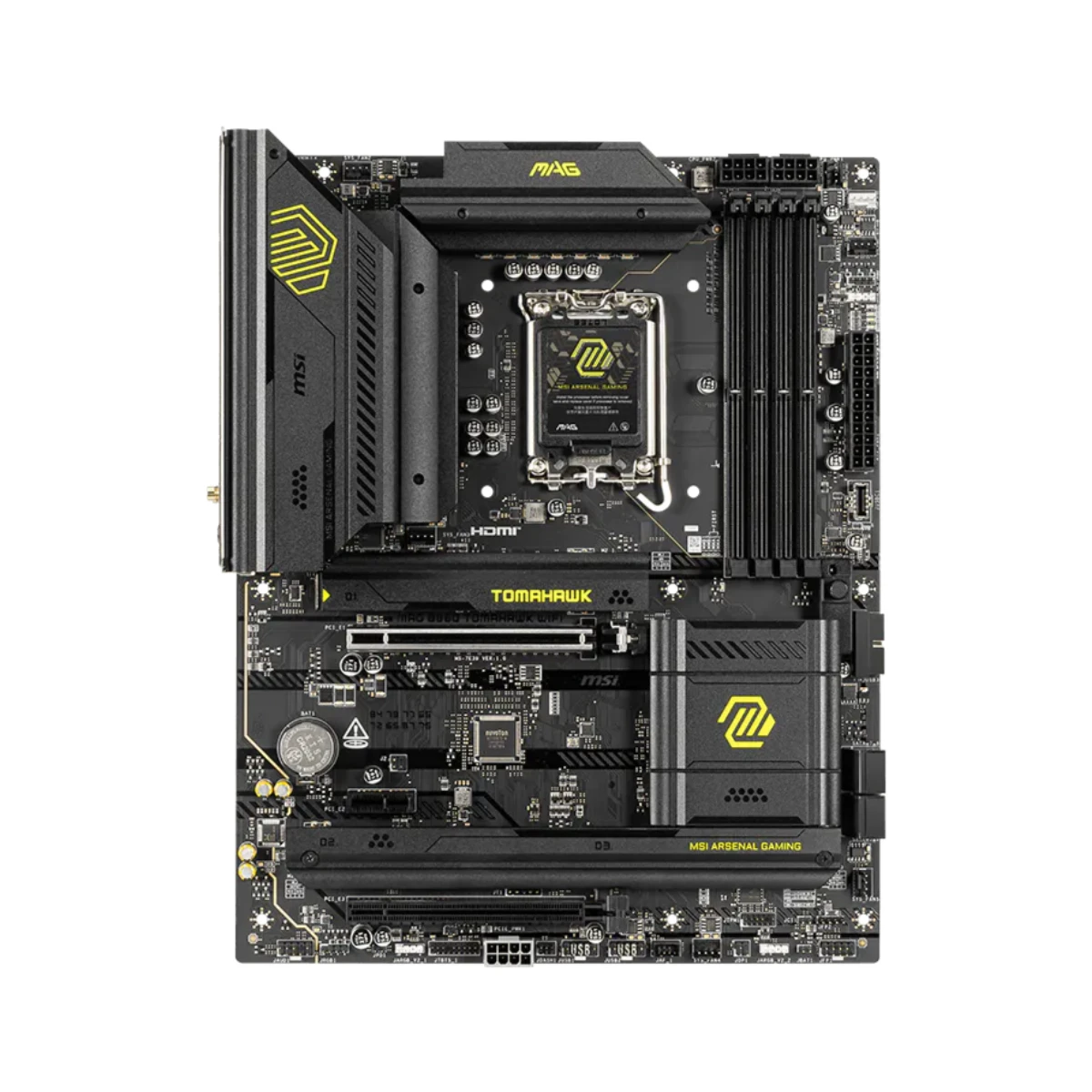

MSI MAG B860 TOMAHAWK WIFI is a high-performance ATX motherboard built for gamers, content creators, and PC enthusiasts who demand advanced technology and reliable performance. Powered by the INTEL B860 chipset and designed for Intel® Core™ Ultra Processors (Series 2) using the LGA 1851 socket, this motherboard delivers powerful processing capability and next-generation connectivity for modern PC systems in Global.
Memory performance is a standout feature, offering 4x DDR5 UDIMM slots with a maximum memory capacity of 256GB. It supports memory speeds ranging from 9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s, allowing users to achieve extremely fast system responsiveness. Overclocking capabilities can reach up to 9200+ MT/s, depending on the configuration. The board supports Intel® XMP 3.0, Dual-Controller Dual-Channel mode, and Non-ECC Un-buffered memory, giving enthusiasts powerful memory tuning and stability for demanding workloads.
Graphics and expansion capabilities are built for modern hardware with PCIe 5.0 x16 support through the primary expansion slot, ensuring maximum bandwidth for high-end graphics cards. Additional expansion slots include PCIe 4.0 connections for other devices and expansion cards. Display connectivity includes HDMI™ 2.1 with FRL supporting up to 8K 60Hz, DisplayPort 1.4 supporting 4K 60Hz, and Thunderbolt™ 4 Type-C with DisplayPort 2.1 support capable of 4K@120Hz / 8K@60Hz output when using compatible processors with integrated graphics.
Storage capabilities are designed for speed and flexibility with 3x M.2 slots, including one supporting PCIe 5.0 x4 for next-generation NVMe SSDs. Additional storage options include 4x SATA 6G ports for traditional drives. RAID support includes RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices, allowing users to configure high-performance or redundant storage systems.
Networking performance is powered by Intel® Killer™ E5000 5Gbps LAN, providing ultra-fast wired connectivity ideal for gaming, streaming, and heavy data transfers. Wireless networking is handled by Intel® Killer™ BE1750x Wi-Fi 7, supporting 2.4GHz / 5GHz / 6GHz bands with speeds up to 5.8Gbps, along with Bluetooth® 5.4 for modern wireless device connectivity.
Audio performance is enhanced with the Realtek® ALC897 Codec delivering 7.1-Channel High Definition Audio with S/PDIF output, providing immersive sound for gaming and multimedia experiences.

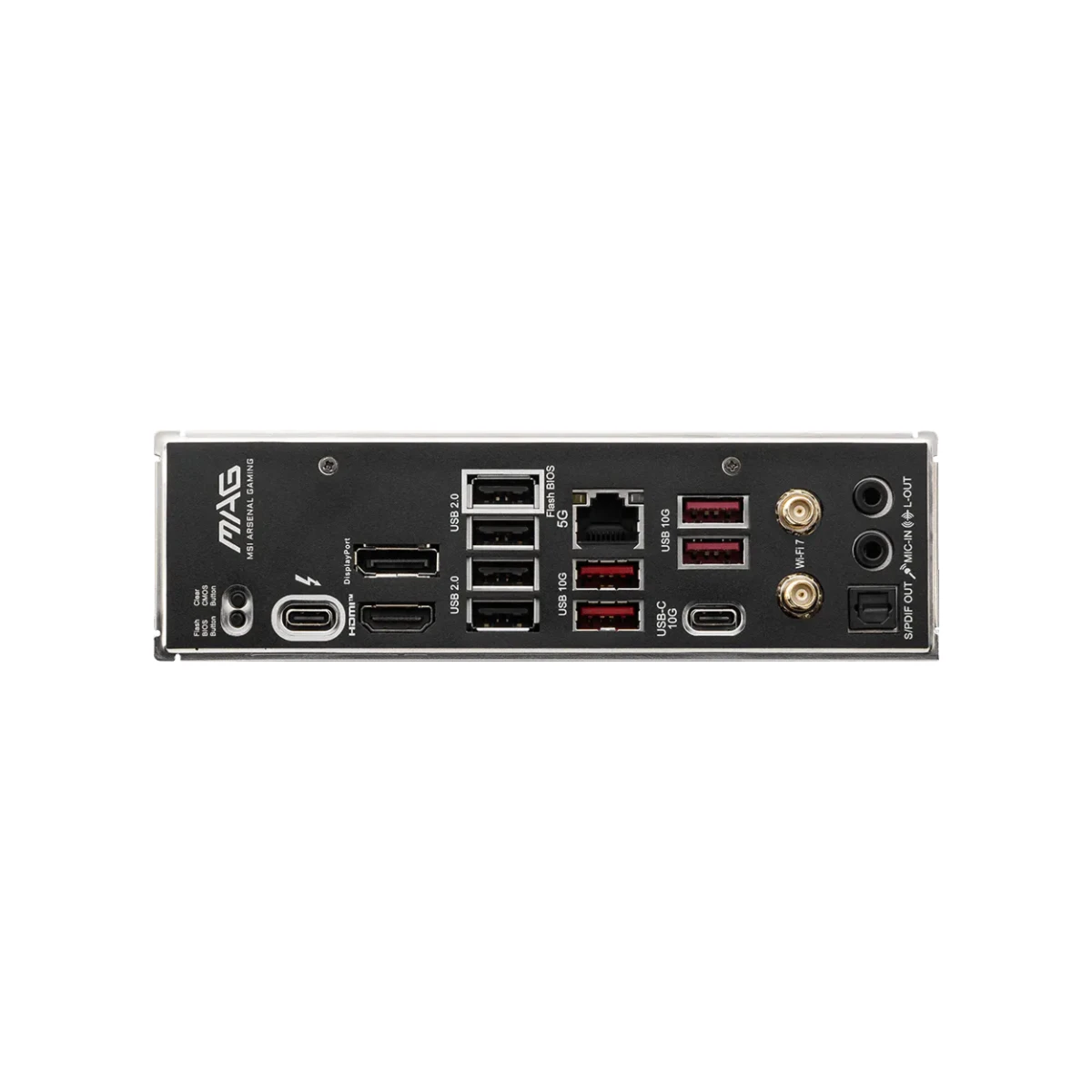

Connectivity is further expanded through high-speed ports including USB 10Gbps Type-A, USB 10Gbps Type-C, and a USB 40Gbps Type-C port powered by Thunderbolt™ 4, delivering exceptional data transfer speeds and advanced display capabilities.
With powerful processor support, ultra-fast DDR5 memory capability, next-generation PCIe expansion, and advanced networking technologies, MSI MAG B860 TOMAHAWK WIFI provides a robust and future-ready platform for high-performance gaming and professional PC builds in Global.
