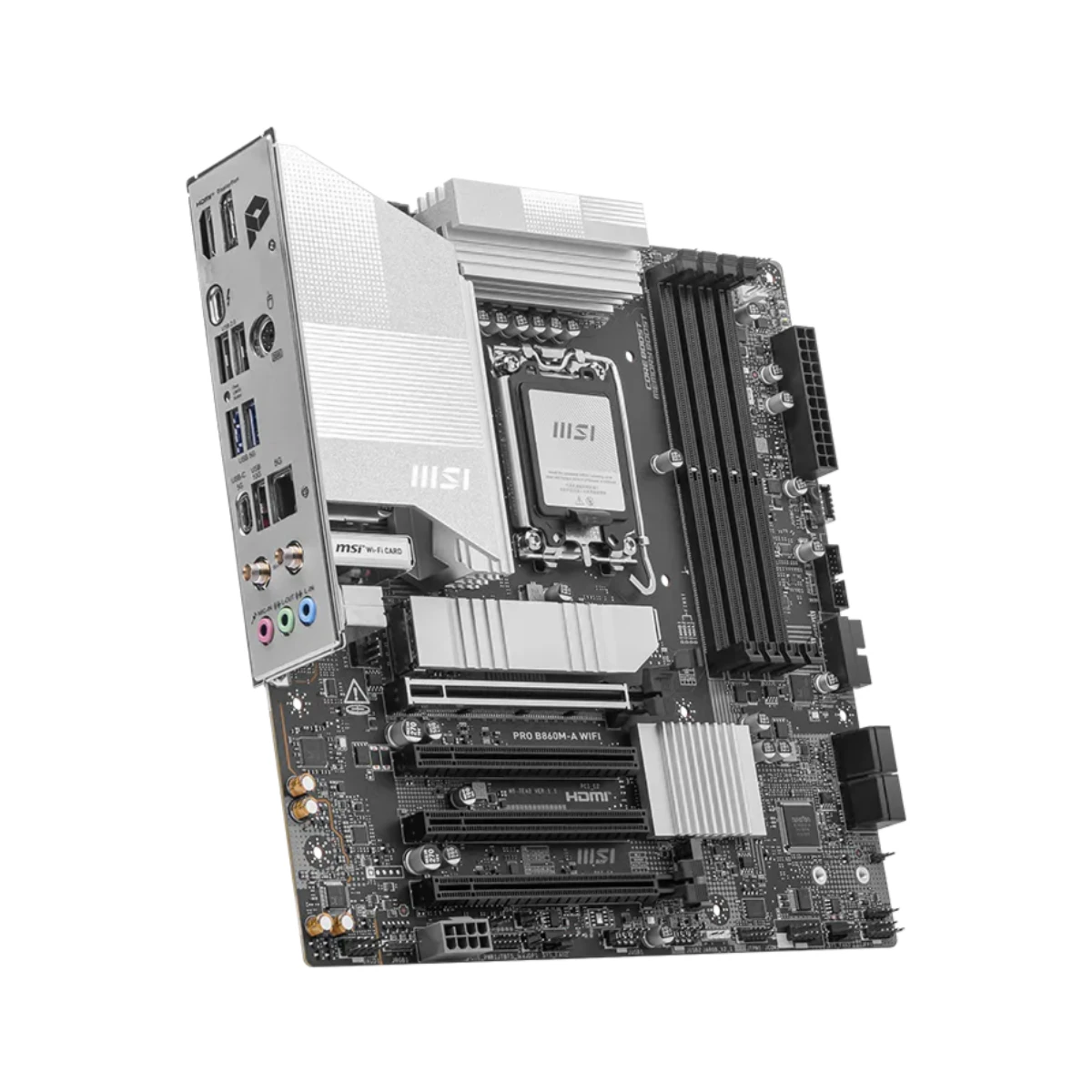

MSI PRO B860M-A WIFI is a high-performance Micro-ATX motherboard designed for Intel® LGA 1851 systems, ideal for gamers, creators, and productivity enthusiasts in Global. Powered by the Intel B860 chipset, it supports Intel® Core™ Ultra Processors (Series 2), delivering robust multi-core performance for demanding workloads.
It features 4x DDR5 UDIMM slots with a maximum memory capacity of 256GB, supporting speeds from 8800 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s. With advanced memory overclocking through Intel® XMP 3.0, dual-controller dual-channel mode, and CUDIMM support, users can maximize memory performance and stability for intensive applications.

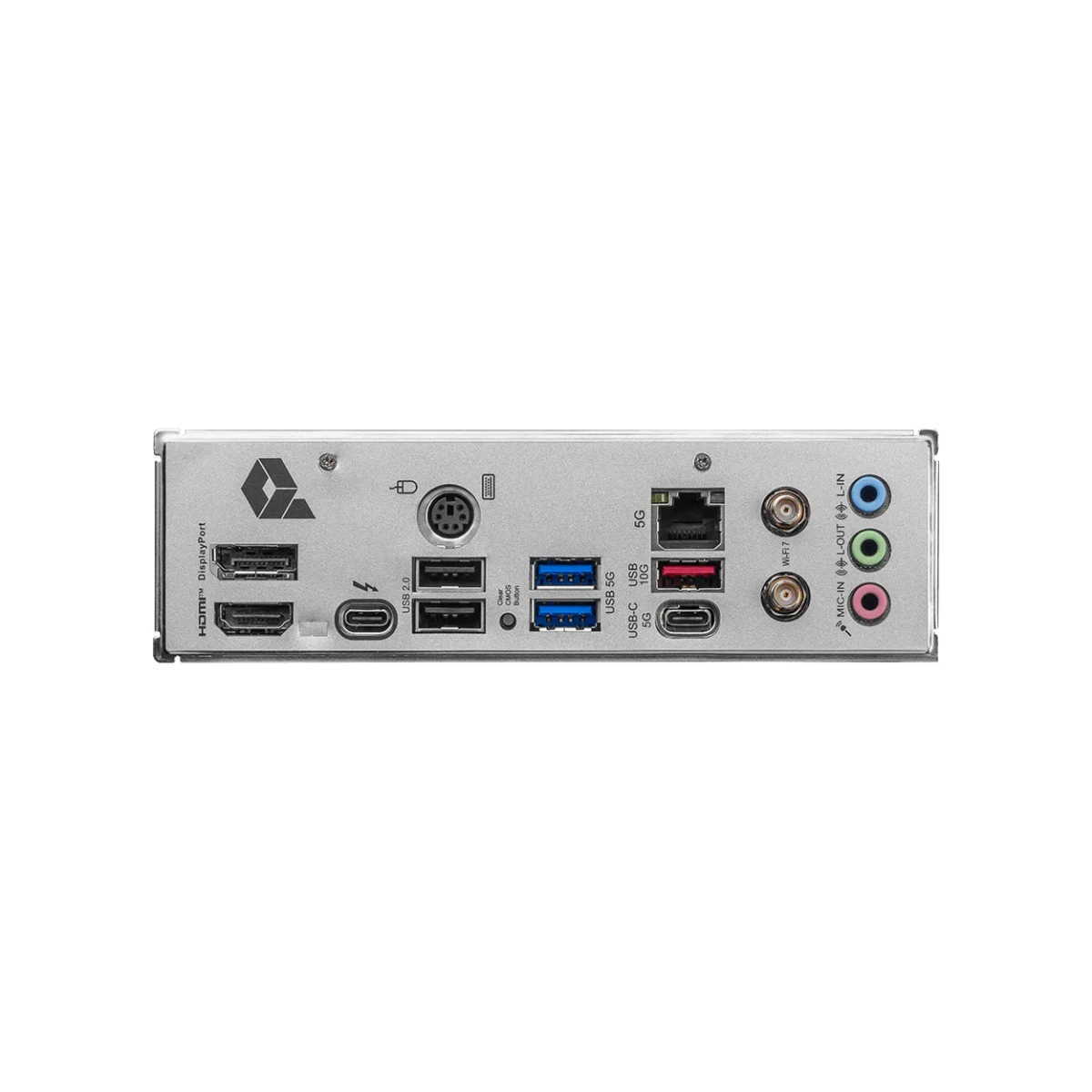

Graphics options include HDMI™ 2.1 and DisplayPort 1.4, supporting up to 4K 60Hz, along with a Thunderbolt™ 4 Type-C port capable of 8K@60Hz / 4K@120Hz, providing exceptional display flexibility and ultra-fast data transfer. Expansion is supported via 4x PCIe x16 slots, including PCIe 5.0 x16 from CPU, and additional PCIe 4.0 lanes for high-speed peripherals.
Storage is handled by 3x M.2 slots supporting PCIe 5.0/4.0 SSDs and 4x SATA 6G ports, with RAID support for RAID 0, 1, 5, and 10, allowing users to configure high-speed and fault-tolerant storage arrays.
Connectivity is next-gen with Intel® 8126 5Gbps LAN, Wi-Fi 7, and Bluetooth® 5.4, ensuring low-latency networking and fast wireless connections. USB ports include multiple 10Gbps Type-A and Type-C connections, including a 40Gbps USB Type-C port, perfect for high-speed external devices.
Audio is delivered via the Realtek® ALC897 Codec with 7.1-Channel HD Audio, and the board features multiple internal headers for fans, RGB, Thunderbolt, and TPM 2.0 support.
With its mATX form factor, high-speed memory, PCIe 5.0 graphics, M.2 NVMe support, Thunderbolt™ 4, and Wi-Fi 7 connectivity, MSI PRO B860M-A WIFI offers a compact yet powerful platform for building a modern PC in Global.
