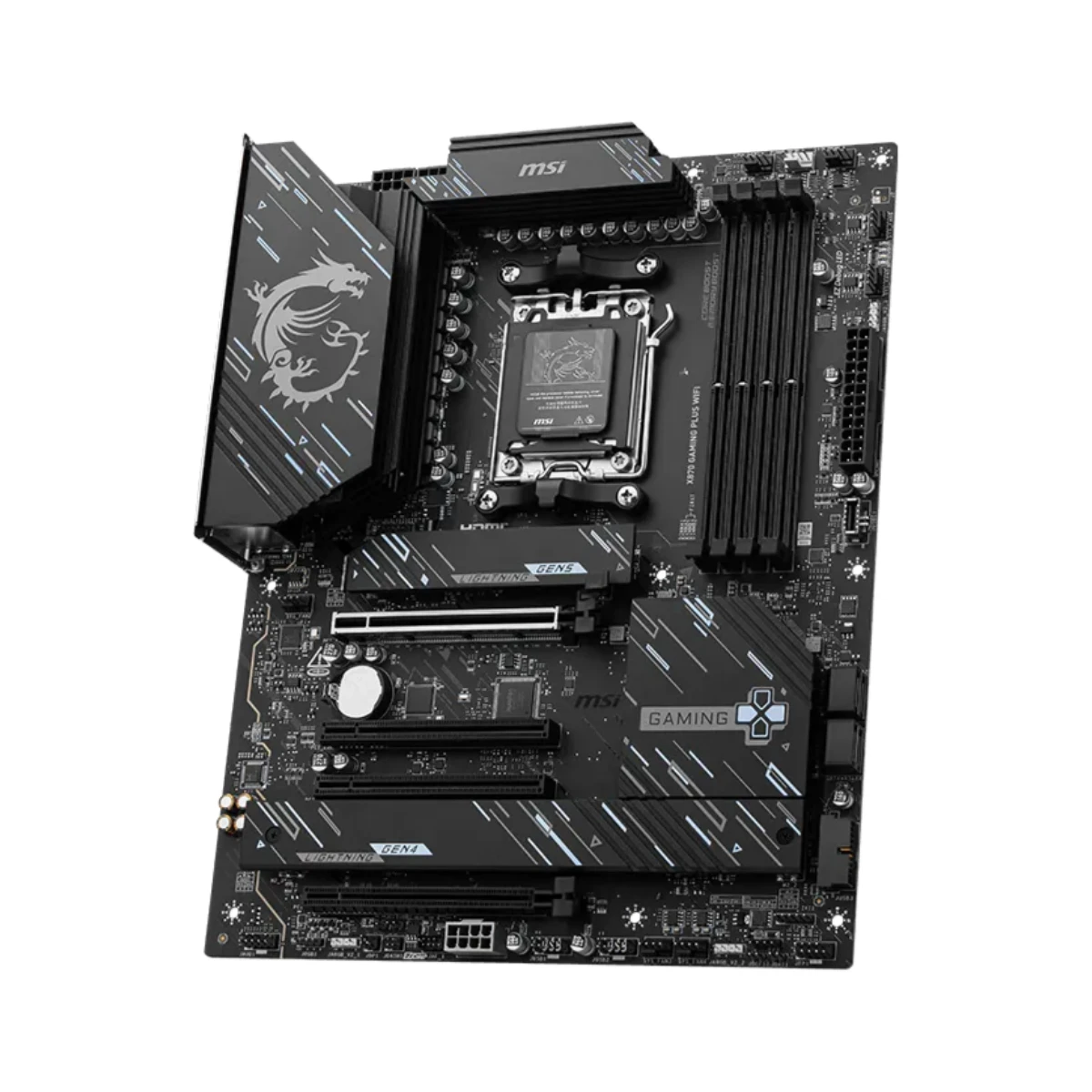

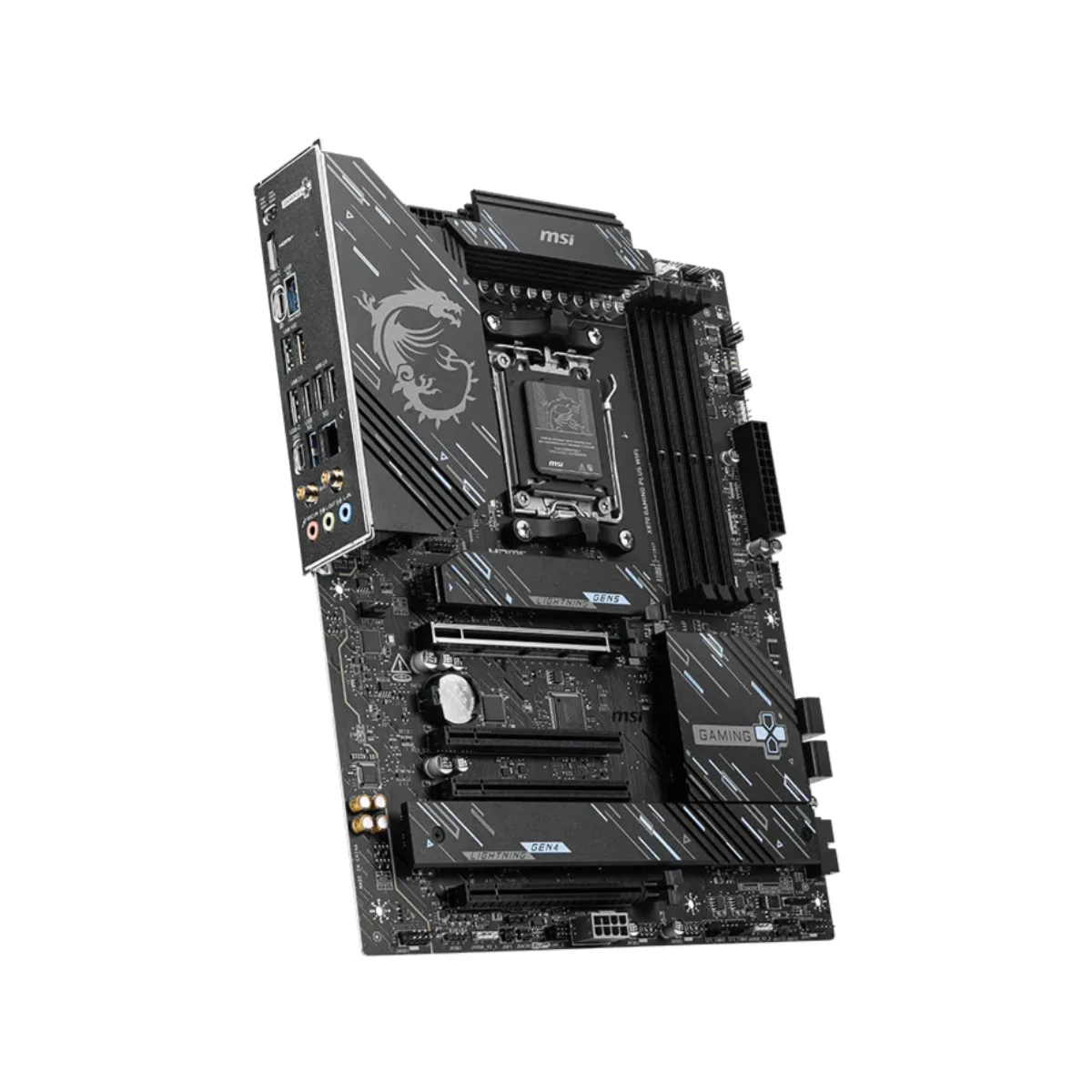

MSI X870 GAMING PLUS WIFI AM5 ATX Motherboard | MOT-MSI-04359

The MSI X870 GAMING PLUS WIFI is a high-performance ATX motherboard designed for gamers, content creators, and PC enthusiasts looking for cutting-edge AMD AM5 platform capabilities in Global. Equipped with the AMD X870 chipset, it supports AMD Ryzen™ 9000, 8000, and 7000 Series Desktop Processors, delivering exceptional processing power for demanding applications, multitasking, and modern gaming.

Memory performance is optimized with 4x DDR5 UDIMM slots, supporting up to 256GB of system memory. It allows DDR5 overclocking from 8200–5600 MT/s (OC) and standard JEDEC speeds of 5600–4800 MT/s, with support for AMD EXPOTM, dual-channel mode, and non-ECC un-buffered memory. Advanced features like CUDIMM and clock driver bypass mode provide extra flexibility for overclockers.

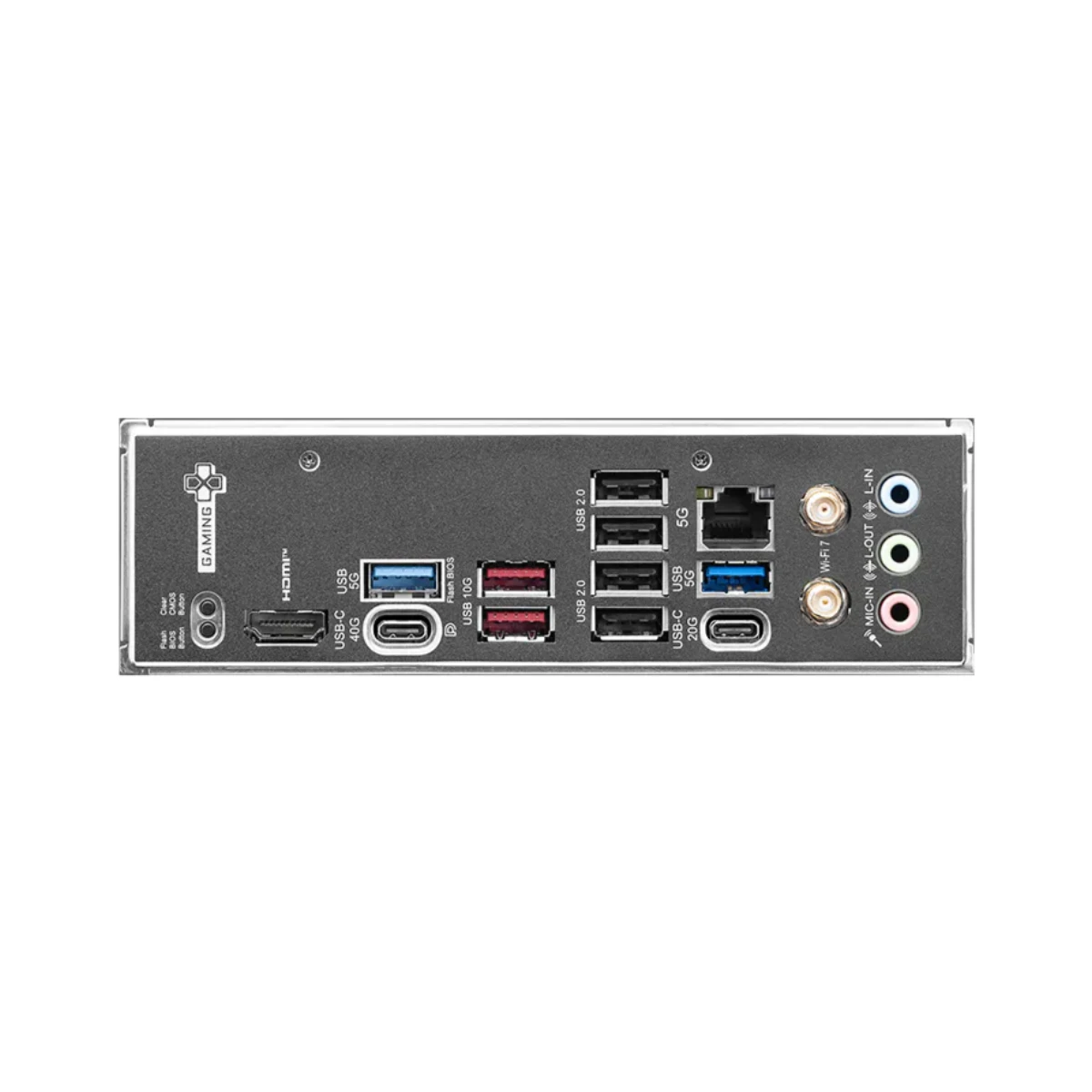

Graphics support includes 1x HDMI™ 2.1 port and 1x USB4® Type-C DisplayPort port, supporting resolutions up to 4K 60Hz, enabling high-quality display setups when paired with processors featuring integrated graphics.

Expansion and storage options include 4x PCIe x16 slots with PCIe 5.0 support from the CPU, and 3x M.2 slots supporting PCIe 5.0/x4 and PCIe 4.0/x2/x4 NVMe SSDs, along with 4x SATA 6Gb/s connectors. RAID 0, RAID 1, and RAID 5 support allows for high-speed, redundant storage configurations (RAID 5 supported on Ryzen™ 9000 series only).

Networking is powered by Realtek® 8126VB 5G LAN and Wi-Fi 7 with Bluetooth® 5.4, delivering ultra-fast wired and wireless connectivity for online gaming, streaming, and high-speed data transfer.

Additional features include EZ Debug LEDs, TPM support, multiple RGB headers, and internal connectors for enhanced system customization. With its ATX form factor (243.84mm x 304.8mm), the MSI X870 GAMING PLUS WIFI provides a reliable, feature-rich platform for building a high-end, future-proof gaming or productivity PC in Global.
